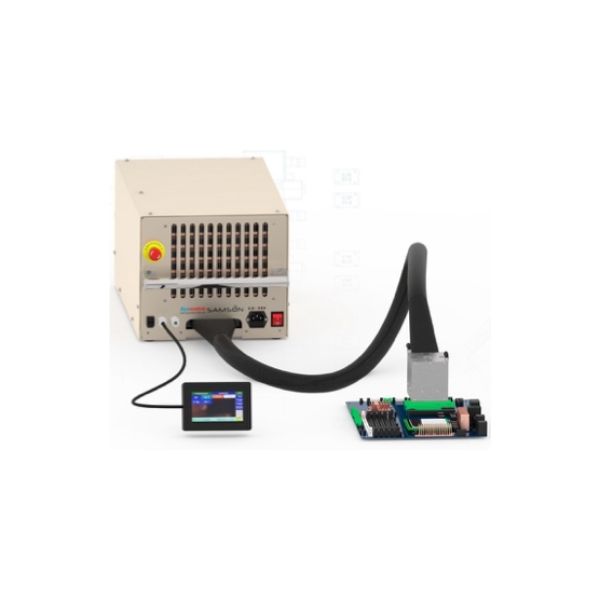

Phase Change Thermal Forcing System for Si Validation -60 ºC to 150 ºC
The new cooling/heating forcing system is used as laboratory equipment to validate Si components in temperature ranges from -60 ºC up to +150 ºC, with a cooling/heating envelope between 150W@-40 ºC, 650W@0 ºC, and 800W@100 ºC. The Samson system can support rack dimensions of 50 x 25 x 29 cm. Samson air cooling requires only a standard 208–230V 50Hz or 110–130V 60Hz outlet. Samson liquid cooling requires an additional chiller with a flow rate range of 3.0–1.8 liters per minute at 15 ºC (+/- 2 ºC). The total cooling system efficiency is approximately 55%.
Amazon AI Labs Has Adopted Samson
Beyond the lab setting, Samson’s innovative -60 ºC to 150 ºC temperature range has garnered attention in e-commerce and logistics. Notably, Amazon has adopted Samson to streamline its cold-chain and temperature-sensitive shipments, leveraging the rapid 3 ºC/sec transition rate and built-in condensation prevention.
Features:
| Temperature range | -60°C to 150°C |
|---|---|

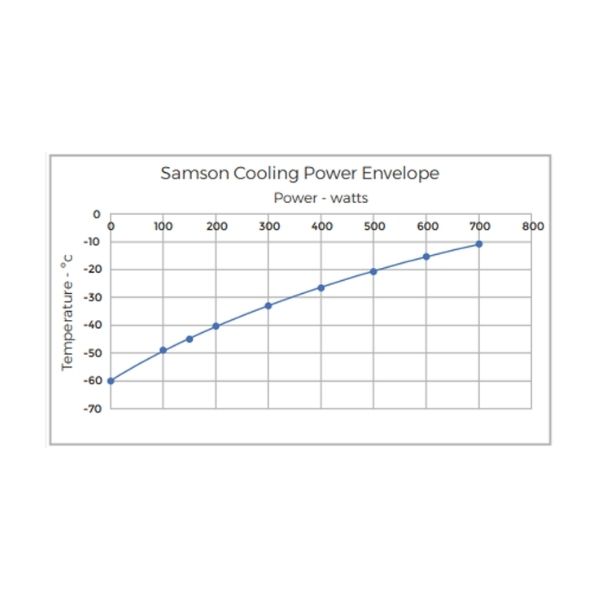

| Cooling power | 150W @ -40/0°, 280W @ -24/0°, 650W @ 0°C, 800W @ 100° |
| Head size | 78 × 86 mm |
| Temperature change rate | ~ (hot/cold): 3°C per second |
| Condensation prevention | Air Purge & Heaters |
| Thermal safety fuse limit | 150°C (OTCB) |
| Umbilical hose length Remote | 2.3 meters (between control box & thermal head) |
| Remote communication | I^2C / Modbus TCP/UDP Protocols |
| Refrigeration | R452a – complies with CA state GWP regulation (2020) |
