Thermal Head Mounting Devices:
- Clamp operates by piston
- Press operates by electric motor and load cell
The Samson/Artic systems have two options to mount the Thermal Head to the Device Under Test (DUT):
- Piston Clamping
- Press
The piston clamp is a device where one side of the Thermal Head is mounted to a piston, and the pedestal side touches the DUT.
Piston Clamping Features:
| Contact force | Up to 180kg |
|---|---|
| Two Handles | On side |
| One Ring on Top of the device | To pull the clamp with retractor |
| Head Z distance movement | Up to 40 mm |
| Force accuracy | (+/-) 2Kgf |
| Force display | Pressure transmits to the Samson Display (0-10v) |
| Safety | Meet Israel safety Standard; Back cover to be close |
| Force Setup | Manually Adjustable |
Piston Clamp
Clamping Options – Press

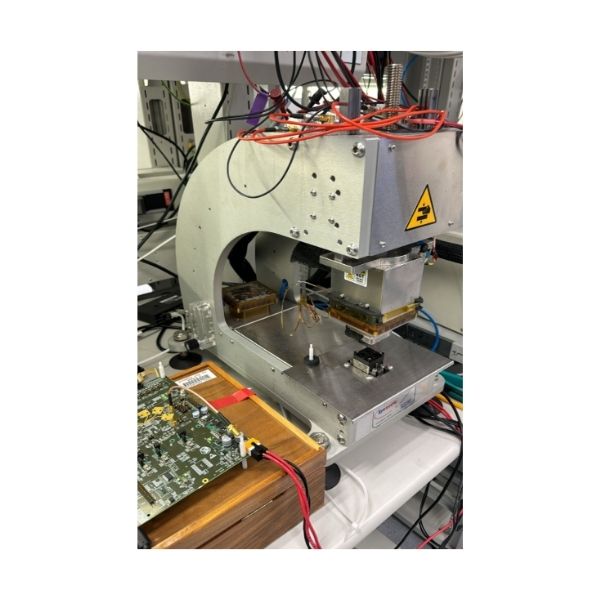

ARTIC Thermal Head is mounted to the Press
Press
The Thermal Head of the Samson/Artic is mounted to an electric motor that can control the force on the DUT between 2 and 100 kg, with an accuracy of ±20 grams.

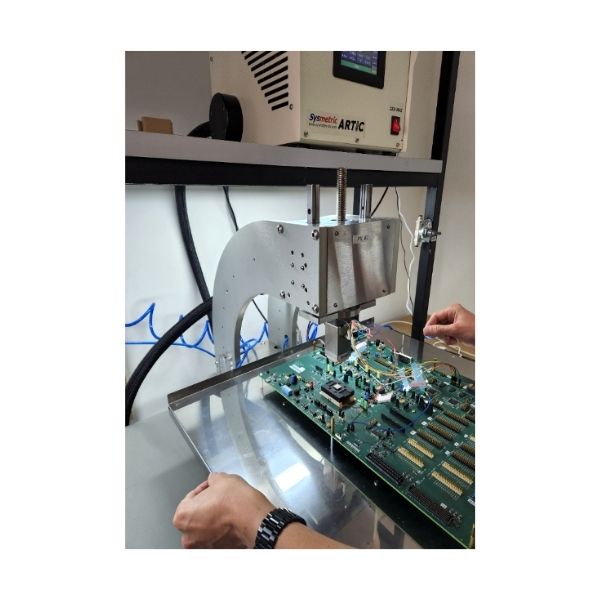

SAMSON Thermal Head is mounted to the Press
